SH-SP10H
SHST
SH-SP10H
Horizontal Chamber (KIT)
Introduction

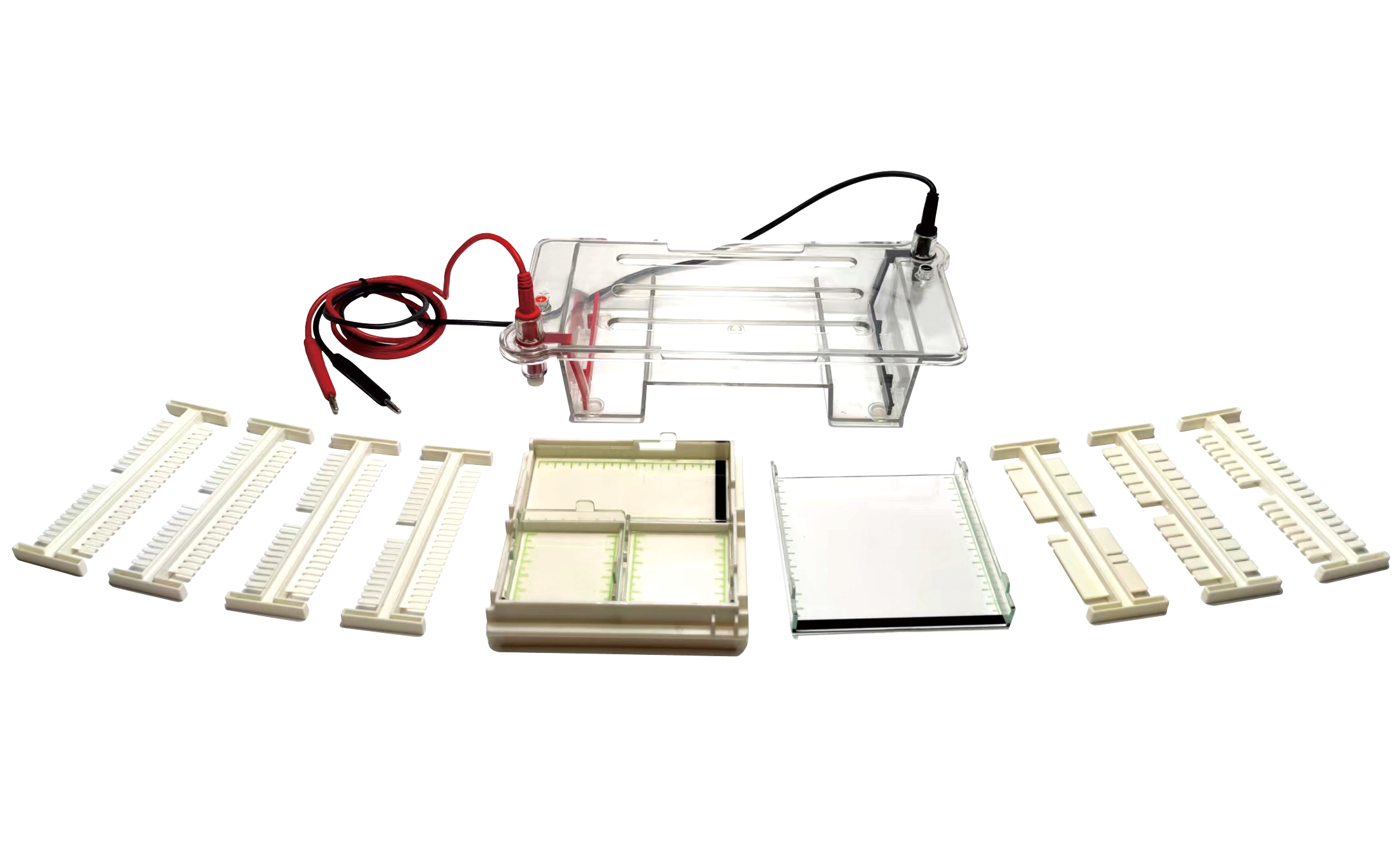

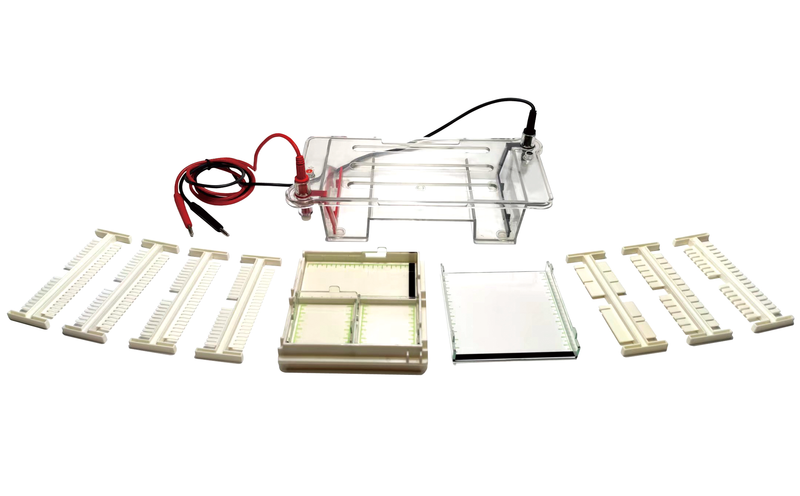

SHST’s horizontal chamber (SH-SP10H) applies versatile samples of DNA on precast or hand-cast gels in a variety of different gel sizes. (60x60mm, 60x120mm, 120x60mm and 120x120 mm).
Features
• Polycarbonate injection molding, easy to operate, support casting four different specifications of agarose gel;
• The gel tray is printed with a black belt and a fluorescent ruler for sample adding and observation;
• The transparent upper cover is designed with holes for easy heat dissipation;
• Auto cutting off the power when opening the cover to ensure safety;
• Lower trough bridge design, saving the buffer fluid;
• The upper cover has a limit function to ensure accurate operation.
• Dual color-coded (Red and black) electrodes with +/- signals and labeled base guarantee the correct positioning of the lid on the base
• Transparent plastic chamber allows clear sample visualization
• Gels-casting trays help to cast the gels right in the cell
• Versatile combs meet your diverse requirements
Specifications
Capable sample size: 60x60mm,60x120mm,120x60mm,120x120mm
Combs:
Thickness 1.0mm, Teeth: 11+25 Qty: 4
Thickness: 1.5mm, Teeth: 6+13 Qty: 1
Thickness: 1.5mm, Teeth: 8+18 Qty:1
Thickness: 2.0mm, Teeth: 2+3 Qty:1
Hand-cast tray:
60x60mm, Qty: 2
60x120mm, Qty:1
120x60mm, Qty:1
120x120mm, Qty:1
Buffer volume
650ml
